1 Bed | 2 Bath | 640 sq ft | 192 sq ft Deck | 32' × 20' | Vaulted Ceilings | Floor-to-Ceiling Windows | Modern Kitchen | Open Floor Plan | Indoor-Outdoor Connection | Natural Materials | Modern Minimalist | Complete MEP Systems
VAULT HAVEN
$3,000.00
$1,499.00
BUILDING PACKAGE
$1,499.00
You will get a RAR (1.5GB) file
(PDF+CAD+CNC+XLSX+JPG+MP4)
Experience modern living redefined with Vault Haven, where thoughtful design meets architectural precision. This complete build system delivers professional-grade documentation and stunning visualization, creating a pathway from vision to reality. Transform your land into a retreat as intentional as your dreams.
🏠 640 sq ft Modern Minimalist Cabin
🛏️ 1 Bedroom (King bed fits comfortably)
🚿 2 Full Bathrooms (Main + Guest)
📐 32' × 20' Footprint
🏡6' × 32' Deck (Outdoor living space)
🏔️ Vaulted Ceilings (26° pitched A-frame roof)
🪟 Floor-to-Ceiling Doors (Abundant natural light)
🍳 Modern Kitchen (full appliances)
🌊 Open Floor Plan (Seamless living spaces)
🌲 Indoor-Outdoor Connection (Large glass doors)
🪵 Natural Materials (Wood + modern finishes)
✨ Clean Lines (Modern minimalist aesthetic)
💡 Complete MEP Systems (Electrical, plumbing, HVAC planned)
WHATS INCLUDED?
Explore over 50 components that is included in the Building Package
Your complete Vault Haven package includes 45 professional components, everything you need to build, visualize, and finish your A-frame cabin from foundation to roofline. Please note this package includes plans and digital files only.
IT DOES NOT INCLUDE:
1. physical building materials and prefab components
2.structural calculations, or engineer stamping.
Provides the complete foundation layout for your Vault Haven cabin, including footing dimensions, concrete specifications, reinforcement details, and anchor bolt placement. Connection details show exactly how your foundation ties into the timber frame above. Construction notes walk you through the build sequence step by step.
Your detailed ground floor layout showing all room dimensions, wall positions, door swings, and window placements across the full 640 sq ft footprint. Everything is drawn to scale and ready for permitting.
Shows the full roof geometry, ridge line, slope angles, overhang dimensions, and material specifications. Designed specifically for the A-frame profile with drainage and weatherproofing in mind.

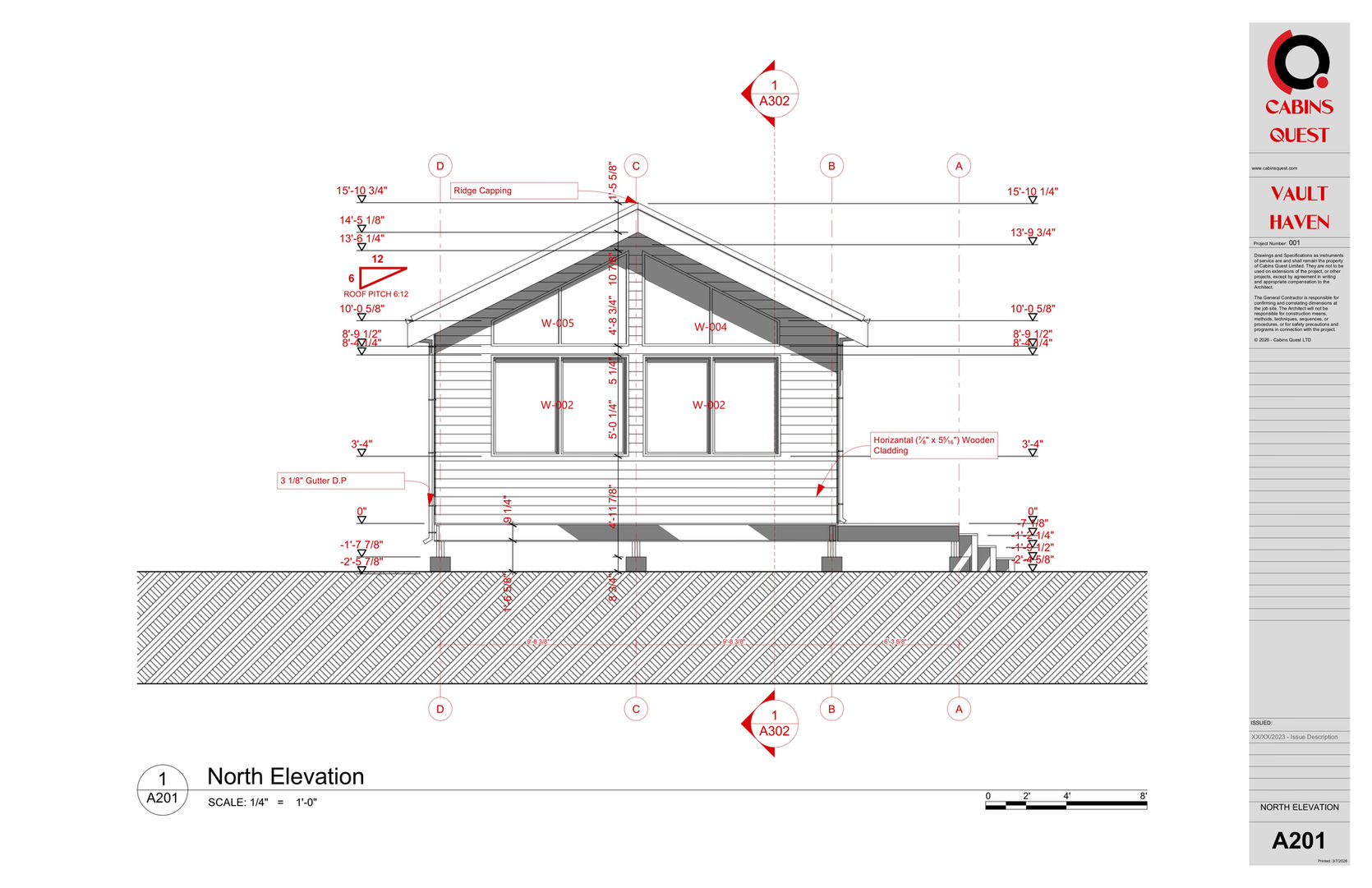

All four exterior views — North, South, East, and West — showing the cabin's finished appearance from every angle. Includes cladding details, window and door positions, roof pitch, and height dimensions from grade to ridge.
Room-by-room interior wall views for your kitchen, both bathrooms, bedroom, and living area. These show cabinetry heights, countertop levels, tile layouts, fixture positions, and built-in details. Everything your builder needs to finish each space exactly as designed.
Cross and longitudinal cuts through the entire structure revealing the internal anatomy of your cabin. See how the floor, walls, and roof layers come together, including insulation depths, structural members, interior finishes, and clearance heights from slab to ridge.
The structural backbone of your build. Includes floor and roof framing layouts, detailed framing drawings and individual cutting lists for all four exterior walls and five interior walls, showing every component layer from studs, insulation, cladding, and gypsum board. Each wall set comes with its corresponding CNC fabrication files so your builder can go from drawing to precision-cut components with zero manual layout. Wall-to-roof connection details and construction notes cover assembly sequence, fastener specs, and structural considerations.
Complete reference tables for every door and window in the project. Each entry lists type, size, material, hardware, and location.
Shows your heating, ventilation, and cooling system layout including unit placement, duct routing, supply and return locations, and thermostat positioning. Sized appropriately for the 640 sq ft footprint.
Your full electrical layout showing outlet positions, switch locations, lighting points, and circuit routing throughout the cabin. Designed for residential code compliance and practical day-to-day living.
Maps out all supply lines, drain routes, vent stacks, and fixture connections for your kitchen and both bathrooms. Laid out clearly so your plumber knows exactly what goes where.
Production-ready digital files for all structural elements. Nine wall sets, floor components, and roof components. Includes a master cut list and files in both DXF and WUP formats. Hand these directly to your CNC operator and start cutting.
Over 15 photorealistic renders at 5K resolution showcasing your cabin from every angle. Six exterior views, eight interiors, four material close-ups, and two lifestyle scenes. Plus a 60 to 90 second VR walkthrough video so you can experience the space before a single board is cut.
A 10-page Canva template giving you a curated visual direction for your cabin's interior. Color palettes, material textures, furniture styles, and finishing touches. Fully editable so you can make it your own.
Everything you need to get started with confidence. Includes a project index and cover sheet, a step-by-step getting started guide, a permitting guide to help navigate your local approval process, and a material options guide covering alternative products and suppliers.
your package is delivered in industry-standard formats: PDF for universal viewing, DWG for AutoCAD editing, DXF for CNC fabrication, high-resolution JPG for all renders, MP4 for the walkthrough video, and an editable Canva template for the moodboard.
Instant digital download as an organized ZIP file. Lifetime access to your files with a personal use license included.
